O-Type
From£9,130€10,780O-26 envelope
EnquireA versatile classic

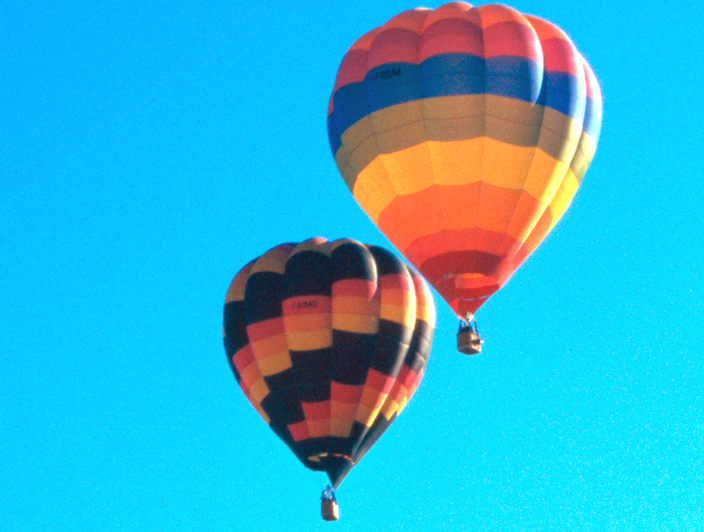

The O-Type envelope combines the engineering efficiency of the popular Viva and the advertising effectiveness of the smoother N-Type envelopes…a balloon for all! This was ideally suited to the sports pilot or promotional work but has now been generally superseded by the need for an artwork-friendly, smooth surface balloon, like the fabulous Z Type.

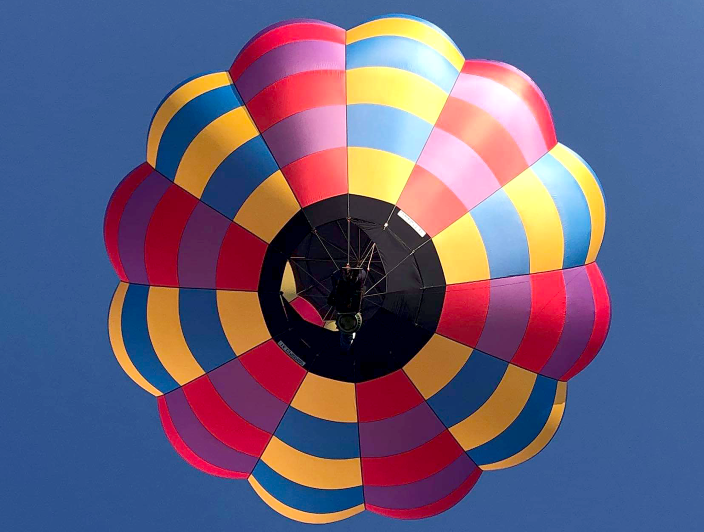

These envelopes are horizontally cut to 12 bulbous gores, attached to twelve stainless steel flying wires.
O-Types can be made from our durable RipStop (69gsm) or our high tenacity superlight RipStop (38gsm - that's nearly half the weight of standard computer paper!). Cameron Balloons designed Hyperlast is also available throughout our range of hot air balloon envelopes.
Looking for the perfect Hopper envelope?
Both the Cameron O-26 and Cameron O-31 are perfect for those pilots that are serious about enjoying the freedom of flight and experiencing an enhanced adrenaline high. With unequalled reputation for quality, a Cameron Hopper offers exciting opportunities for leisure, sport and commercial teams.
New Hoppers are made from our stunning Superlight RipStop (38gsm) - that's nearly half the weight of standard computer paper...
With an envelope that weighs from only 29kg, this stunning advance in fabric technology introduces even lighter ballooning from Cameron Balloons Ltd. Add this to the Millennium Hopper base unit & burner, which weighs just 20kg, and an aluminium 'Alugas' 40 cylinder weighs at 13kg (34kg full) or a Titanium 60 cylinder at 10kg (40kg full)... And you have yourself a 'Record-Breaking' possibility... Superlight-weight ballooning is likely to get even more interesting from now on...
.
At a glance

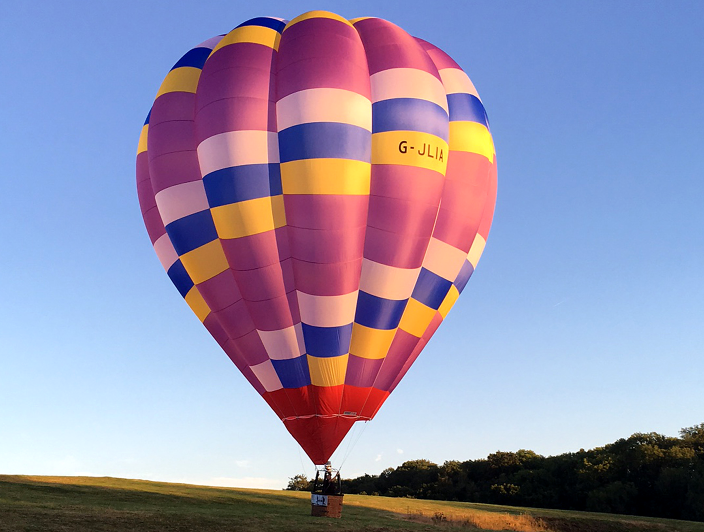

- Twelve horizontally cut bulbous gores creates this classic balloon envelope.
- The ultimate envelope for a Superlight Hopper.
- Large proportioned mouth.
- Ideally suited for those pilots who like a retro feel and style to modern hot air ballooning.
- Our balloon envelopes use a combination of fabrics; a Nomex, heat resistant base panel, Superlight Nylon or Regular Ripstop Nylon and/or Hyperlast options, in a choice of 26 colours including shiny silver and shiny gold.
All O-Type models
All envelopes are delivered with envelope karabiners, envelope bag and relevant paperwork.
| O-26 Hopper | O-31 Hopper | O-42 | O-56 | O-65 | O-77 | O-84 | O-90 | O-105 | O-120 | O-140 | O-160 | O-38 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size cu.ft | 26,000 | 31,450 | 42,000 | 56,000 | 65,000 | 77,500 | 84,000 | 90,000 | 105,000 | 120,000 | 140,000 | 160,000 | 38,000 |
| Size cu.M | 736 | 890 | 1,190 | 1,586 | 1,841 | 2,195 | 2,379 | 2,549 | 2,974 | 3,398 | 3,965 | 4,531 | 1,076 |
| No. of gores | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Passenger no. | Pilot only | Pilot only | Pilot + 1 | Pilot + 1 | Pilot + 1 or 2 | Pilot + 2 | Pilot + 2 | Pilot + 2 or 3 | Pilot + 3 or 4 | Pilot + 4 or 5 | Pilot + 5 or 6 | Pilot + 6 or 7 | Pilot |
| Nomex option | Scoop | Scoop | Scoop | SCoop | Scoop | Scoop | Scoop | Scoop | Scoop | Scoop | Scoop | Scoop | Scoop |
| Dimensions | 14.5m / 11.7m | 15.4m / 12.4m | 17m / 13.8m | 18.8m / 15.2m | 19.6m / 15.9m | 20.6m / 16.8m | 21m / 17.3m | 21.6m / 17.7m | 22.6m / 18.7m | 23.5m / 19.5m | 24.6m / 20.5m | 25.1m / 21.5m | 16.3m / 14.1m |
| Typical enevlope weight | Superlight - 26kg | Superlight - 31kg | Superlight - 42kg | Superlight - 52kg | Superlight - 60kg | Superlight - 70kg or Ripstop Nylon - 100kg. | Superlight - 73kg or Ripstop Nylon - 105kg. | Superlight - 76kg or Ripstop Nylon - 112kg. | Superlight - 90kg or Ripstop Nylon - 125kg | Superlight - 100kg or Ripstop - 135kg | Ripstop Nylon - 150kg | Ripstop Nylon - 165kg | Superkight 39kgs |
| Deflation systems options | Parachute | Parachute | Parachute | Parachute | Parachute | Parachute / RDS | Parachute / RDS | Parachute / RDS | Parachute / RDS | Parachute / RDS | Parachute / RDS | Parachute / RDS | Parachute |
| Turning vents | Optional extra* | Optional extra* | Optional extra* | Optional extra* | Optional extra* | Optional extra* | Optional extra* | Optional extra* | Optional extra* | Included | Included | Included | Optional extra* |
| Design Chart | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download |
Envelope options
Fabric colours
- Please see our fabric colour charts for:
Superlight colour wheel - 38gsm fabric for use in Superlight envelopes
Ripstop Nylon & Hyperlast colour wheel
Nomex colour wheel - Heat resistant fabric for the mouth and scoop - Special colour dye fabrics are also available upon request. This can be the perfect solution for colour matching your desired Pantone or corporate shade.
Clients are invited to approve colour sample(s) prior to committing to buy the fabric batch and agreeing the additional fabric production time required.
Envelope Options
- Superlight fabric option is available for all balloons and can be used in conjunction with regular ripstop and Hyperlast.
- Internal Load-tape construction available up to 140,000cu. ft.
- Envelope ‘windows’ in Cameron see-safe fabric can be positioned to provide sight of the sky or balloons above.
- Additional row of heat resistant Nomex within the 'A' panels. Available from 105,000cu. ft upwards.
- Additional registration marks and country flags can be applied.
Why not consider Superlight?
Due to the large percentage of a hot-air balloon envelope being fabric, a fundamental key is the saving that can be made by using a lighter ripstop. This could be up to 30% depending on the type and size of balloon required. This gives the greatest saving by far.
Other specifications like flat-webbing tapes, 3mm diameter flying wires and lightweight crownline will all compliment your choice.
To continue with the weigh-saving, why not include Kevron load tapes? They are immensely strong and very light-weight, offering a further 4% reduction in weight from our standard envelopes. We encapsulate these 'tapes' within the seams, to protect them from damaging UV rays. Any Kevron load tape that can not be within the seam is feed securely through a tubular, outer tape to ensure it's longevity.
We are very pleased to announce that our Superlight fabric is the same price as our regular Ripstop (69gsm). A range of 49gsm ripstop fabric is also available, subject to a small supplement charge. Please call or email for further details - sales@cameronballoons.co.uk
Why not chat with our sales team about which fabric is right for your balloon or project, we would be delighted to provide ideas, suggestions, case-study experience, customer testimonials and fabric samples.
Optional equipment
- Choice of deflation systems - RDS (Rapid Deflation System) or Standard Parachute.
- Turning vents available.
- Lightweight polyester loadtapes available.
- Kevron loadtapes available. A Kevron loadtape consists of woven Aramid fibre webbing encased in fabric sheath which replaces the conventional polyester or nylon tape for weight advantage.
- Kevlar flying cables are a lightweight option to be considered in place of stainless steel flying wires.
- Shaped banners with or without artwork are available, tailor-made to hug your balloon envelope’s surface.
See the O-Type for yourself
What people are saying…
“...the balloon was shipped on time. I received the paperwork and authorisation to fly on the Friday. On Saturday and Sunday the balloon was inflated in front of 16,000 people in a special event.”
Pierre Galley, Switzerland
“It was a great asset to be able to rely on you to put together a good product at short notice. Thanks again for helping out, you and the team were all great!”
Matt Nicholson, British Airways
“After 7 years of worldwide performances, not a single problem during the annual inspections of our equipment built by Cameron Balloons. #quality”
Lenny Cant, Mister Bup Balloon Team, Belgium
“It has been a pleasure to work with everyone at Cameron Balloons Ltd on this project for Universal Pictures and I hope we can continue to do so with other clients. Thanks to everyone at CBL for ‘making this happen’.”
Nick Langley, MD @ Airship & Balloon Company Ltd, UK
“I am so impressed by how wonderful it looks. So true to the ideas and the design, and so BIG. I almost can't believe you pulled it off, but I always knew you would.’”
Patricia Piccinini, Artist and Sculptor of SkyWhale
“The balloon is a beauty :) Thank you and the Cameron Balloons crew.”
Wojciech Kaczmarek, Kol Dental Balloon Team, Poland
Customer promise
Each balloon envelope is built from individual “blocks” of fabric called panels, which are grouped into vertical “stripes” known as gores.
The O-Type shape has a bulbous surface creating a wonderfully classic balloon that so many adore.
Our guarantee period for superlight fabric is four years (48 months) or 250 hours of flight time, whichever occurs first. Regular ripstop nylon is five years (60 months) or 300 hours of flight time, whichever occurs first. For Hyperlast fabric incorporated into the balloon envelope is six years (72 months) or 600 hours of flight time, whichever occurs first.
All balloons require regular maintenance and servicing which keeps balloon-systems working well and enables years of happy flying – maintenance usually takes place after 100 flying hours or 12 months whichever is sooner. Airworthiness Inspection & Maintenance Manual (UK).
Cameron Balloons fabrics have anti-mould, anti-mildew and anti-UV degradation agents added to them to prolong the life and colour of our balloons. Fluorocarbon is also added to the outside face of the fabric to defend the fabric from moisture, dirt and debris.
Excellence really is our lowest standard; exemplary quality, proven reliability and attentive service are some of Cameron Balloons key and constantly striven for company goals.
Our range of complete balloons, airships and lighter-than-air craft are all fully certified and approved.
Cameron Balloons also offers assurance – An ESCROW account is available – guaranteeing that your deposit payment is safe with us.
