Inflation fans

Inflation fans

Inflation fans

From£1,360€1,600Cameron 3HP

Enquire

Cameron Balloons Ltd have a range of superbly designed fan systems to make the inflation of hot-air balloons smooth and effortless. A tubular stainless-steel frame provides a very robust platform that offers excellent protection, flexibility and mobility for the user.

All our inflation fans are fitted with extremely reliable Honda 4 stroke, petrol engines.

Cameron inflation fan range

From 3hp to 13hp XL, there is a powerful fan in our range to suit the smallest, one-man hopper envelope right up to the World's largest certified hot-air balloon, the Cameron Z-750!

Cameron 3HP

Cameron 3HP

Envelopes up to 60kg

Weight: 18kg

Cameron 5.5HP

Cameron 5.5HP

Small envelopes

Weight: 36kg

Cameron 8HP

Cameron 8HP

Small to Medium envelopes

Weight: 49kg

Cameron 13HP XL

Cameron 13HP XL

Medium to Large envelopes

Weight: 62kg

Overview

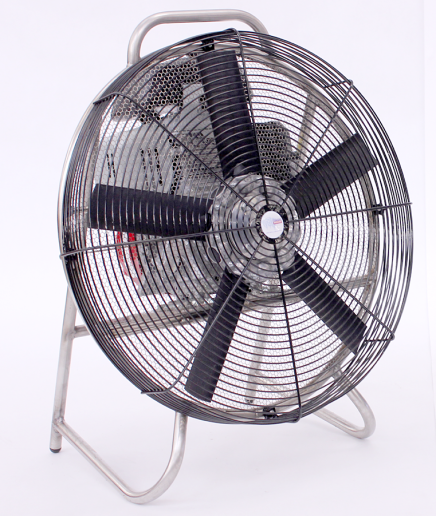

Cameron 3HP

  • Proven, reliable 4-stroke petrol engine - Honda GX100
  • Extremely robust
  • Stainless steel frame with dip-coated wire cage.
  • 18kg total weight

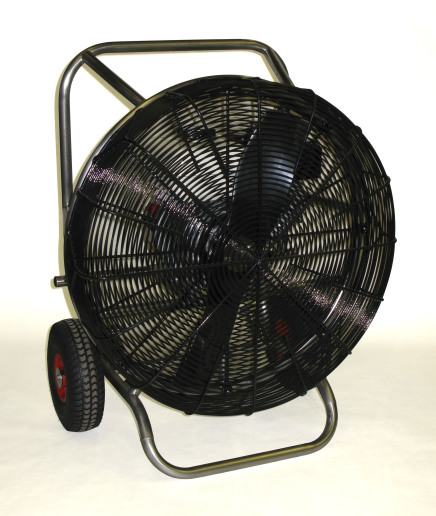

Cameron 5.5HP

  • Proven, reliable 4-stroke petrol engine - Honda GX160
  • Extremely robust
  • Stainless steel frame with dip-coated wire cage.
  • 36kg total weight
  • Exclusive carbon fibre, twin blade propeller
  • Tilt-back design
  • Fitted with Lock-Stop axle locks

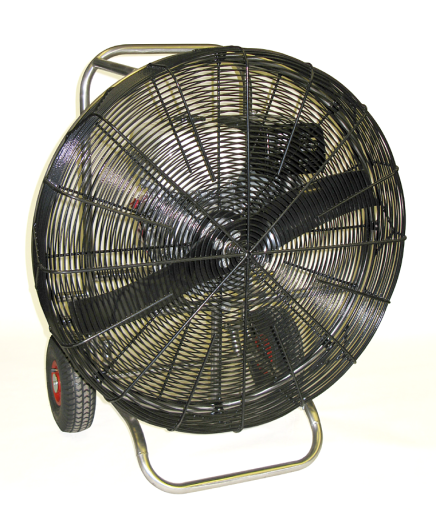

Cameron 8HP

  • Proven, reliable 4-stroke petrol engine - Honda GX340
  • Extremely robust
  • Stainless steel frame with dip-coated wire cage.
  • 49kg total weight
  • Exclusive carbon fibre, twin blade propeller
  • Tilt-back design
  • Fitted with Lock-Stop axle locks

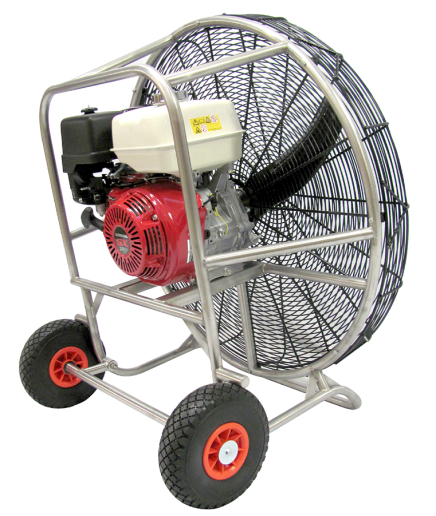

Cameron 13HP XL

  • Probably the World's most powerful inflation fan!
  • Proven, reliable 4-stroke petrol engine - Honda GX390
  • Extremely robust, recommended for use in the harshest environments
  • Stainless steel frame with dip-coated wire cage.
  • 62kg total weight
  • Exclusive carbon fibre, twin blade propeller
  • Tilt-back design
  • Fitted with Lock-Stop axle lock

All Inflation fans models

  3HP 5.5HP 8HP 13HP XL
Drawing Number CB8970 CB6445 CB6448 CB6443
Height 790mm 900mm in storage
800mm when tilted
980mm in storage
950mm when tilted
1080mm in storage
1060mm when tilted
Width 600mm 670mm 870mm 970mm
Length 480mm 500mm in storage
660mm when tilted
570mm in storage
750mm when tilted
590mm in storage
740mm when tilted
Weight 18.2kg 37kg 50kg 61kg
Propeller Length 530mm 610mm 750mm 860mm
.PDF Drawing 3hp Superlight Inflation Fan 5.5hp inflation fan 8hp inflation fan 13hp XL inflation fan

Special Fx

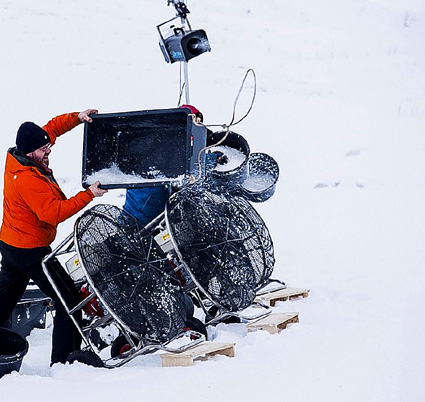

Our supremely powerful 13HP XL fan is the preferred choice of many Special FX companies worldwide, having helped to provide stunning visual images for many feature films, music videos, adverts and TV roles.

On set with the Special FX team

Contact: sales@cameronballoons.co.uk for more information
