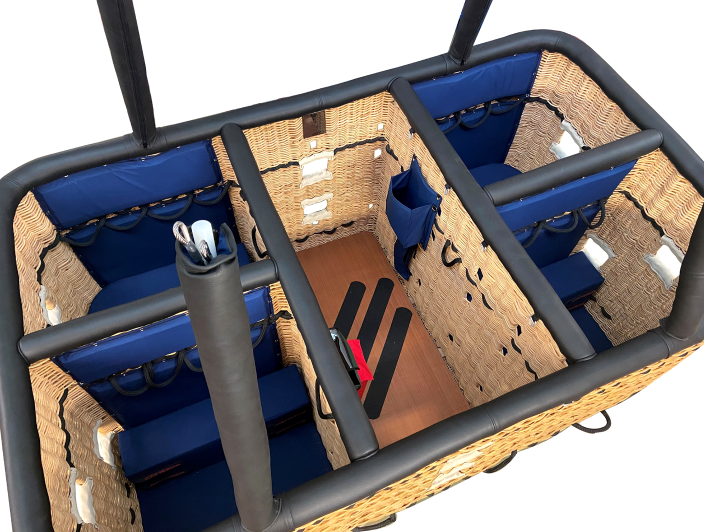

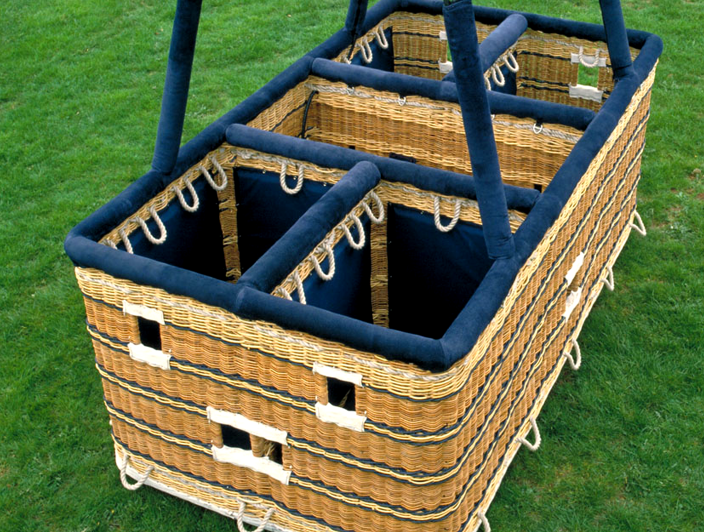

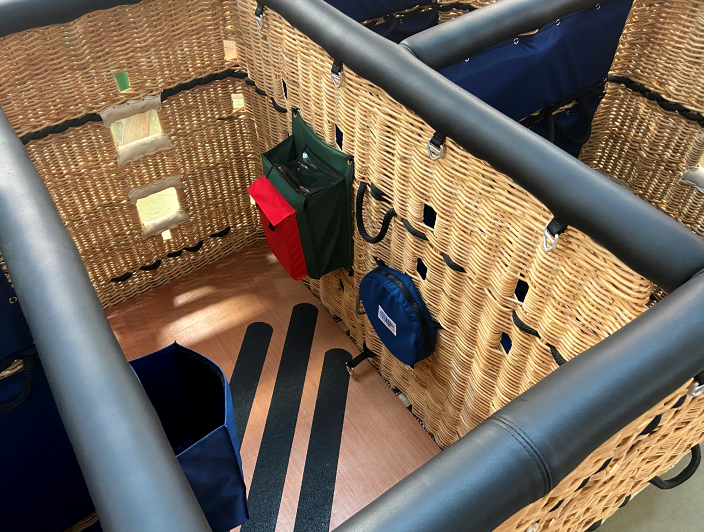

EnquireLarger baskets have internal partitions woven into the walls and floor. The partitions provide greater structural integrity and separation between groups of passengers. The pilot and fuel cylinders occupy a separate compartment from the passengers. There are many woven floor options available from the Cameron Balloons range.
Cameron Balloons are the only major European manufacturer to offer baskets with a woven floor option on baskets up to 3.6m long. Woven floors are lighter and our weave patterns can be adjusted to add strength or reduce weight, if required.

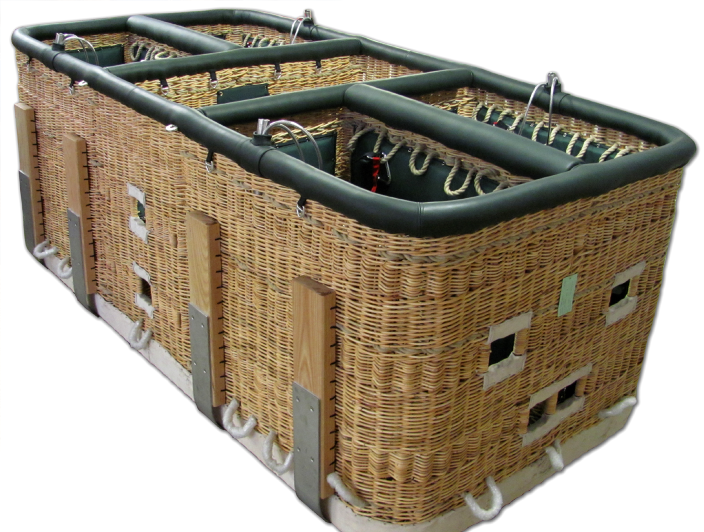

Baskets are traditional wickerwork construction, using a mixture of Willow and Cane. The Cameron Balloons 'TT' Partition baskets have a woven floor with Kiln dried Ash or Synthetic (optional) runners bolted to the floor. The structural load is taken by twin, 6mm stainless steel wires running through a 32mm dia. stainless steel top frame and to the walls forming a continuous sling from the burner frame through the basket floor.
Longevity and strength are very important to consider when looking for the perfect hot-air balloon basket.
We pride ourselves with the fact that many of our baskets are still airworthy today, after so many decades flying professionally or for pleasure.

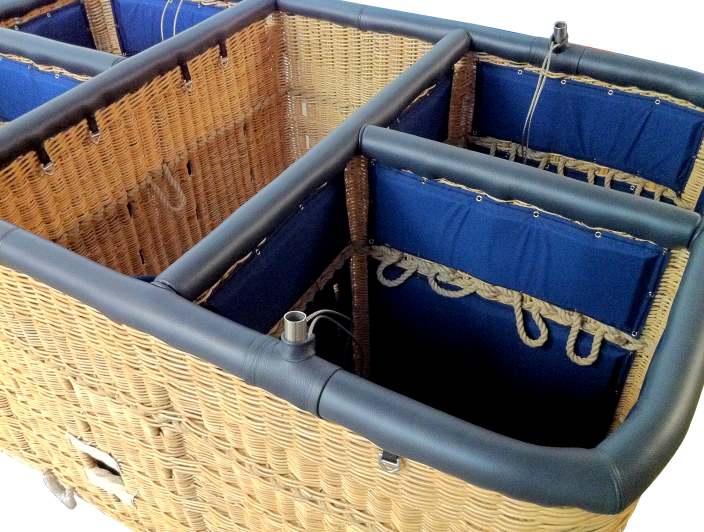

The top of the basket is padded and trimmed with the highest quality leather or suede. The bottom edge is traditionally covered with rawhide which protects the basket from damage during landing and transportation. For those in very harsh environments, we offer a leather base at a supplementry price.
Recent additions to the options available have included:
• Towing Systems,
• Pilot Pulpit Rails,
• Pilot Compartment Cross-Bracing,
• Pilot Box (Step),
• Pilot and Passenger Restraints,
• Sidewall Runners,
• Sidewall Protection,
• Passenger Positioning Blocks,
• Basket Strong Point for launch restraint,
• Leather handles,
• Extra step holes and embroidered trim.
Cameron Balloons Ltd also offer a number of special purpose baskets. For further information please contact our Sales Department or your nearest Cameron Dealer.
Choose from the following models to suit your balloon:
| 210TT - CB3084 | 250TT - CB3004 | 300TT - CB3042 | |
|---|---|---|---|
| Occupants | 8* + 1 inc. Pilot | 12* + 1 Inc. Pilot | 16* + 1 Inc. Pilot |
| External Dimensions (cm) |
155 x 264 |
155 x 314 |
155 x 360 |
| Height (cm) (Approx) |
138 |
138 |
138 |
| Support Poles |
4 |
4 |
8 |
| Compartments |
5 |
5 |
5 |
| Pax Compartment Dims (cm) |
92 x 77 |
117 x 77 |
140 x 77 |
| Pilot Compartment Dims (cm) |
155 x 80 |
155 x 80 |
155 x 80 |
| Approx. KG | 240 - 250kg | 280 - 300kg | 350 - 360kg |
| Cushion Floor | Optional | Optional | Optional |
| Sidewall Cushions | Optional | Optional | Optional |
| Format | Double 'T' Partition | Double 'T' Partition | Double 'T' Partition |
| Pulpit Rail | Optional | Optional | Optional |
| Sidewall Runners | Optional | Optional | Optional |
| Step holes | 2 per Passenger Compartment. 4 per Pilot Compartment Extra Step holes = Optional |
2 per Passenger Compartment. 4 per Pilot Compartment Extra Step holes = Optional |
2 per Passenger Compartment. 4 per Pilot Compartment Extra Step holes = Optional |
| External Handles | 14 in total - 3 on each short side 4 on each long side |
16 in total - 3 on each short side 5 on each long side |
20 in total - 3 on each short side 7 on each long side |
| Internal Handles | 38 in total - 9 in each Passenger Compartment 2 in the Pilot Compartment |
54 in total - 13 in each Passenger Compartment 2 in the Pilot Compartment |
54 in total - 13 in each Passenger Compartment 2 in the Pilot Compartment |
| Leather Handles | Optional | Optional | Optional |
| Leatherbase | Optional | Optional | Optional |
These woven floor, double 'TT' partition basket sizes are approximately wall centre to wall centre. Please note that an additional allowance must be made for external wall thickness and handles when determining the size of any trailer or vehicle that will carry the basket.
* Occupancy data based on EASA requirements for baskets with or without passenger squabs.
Please see our leather colour charts for:
